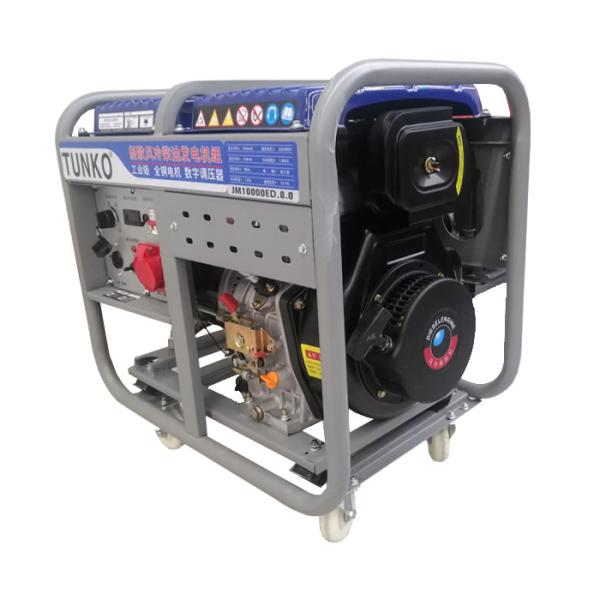

Single-Phase Luxury Vertical Air-Cooled Direct-Injection AVR Factor Price Diesel Generator
Luxury single-phase diesel generator
Benefits:
1. Patented appearance design, elegant appearance, easy to move.
2. Power upgrade, no decompression design to effectively protect the battery and starter motor.
3. Pure copper large motor, sufficient power, high temperature resistance.
4. Waterproof panel, safe and reliable, Easy to use.
5. Increase the battery life of the fuel tank, suitable for various complex environments.
6. Digital voltage regulator, with a wide range of loads and strong load capacity. Vibration bottom plate, thickened frame, truly shock absorption, compression resistance and reinforcement.
Guarantee----
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
The details :
| Unit Type | Luxury Huanneng Power 6500 | Luxury Huanneng Power 8000 | Luxury Huanneng Power 10000 | Luxury Huanneng Power 12000 | Luxury Huanneng Power 13000 |
| GENERATOR | Excitation method | AVR voltage automatic adjustment | AVR voltage automatic adjustment | AVR voltage automatic adjustment | AVR voltage automatic adjustment | AVR voltage automatic adjustment |
| Rated output power | 5KW | 6KW | 7.5KW | 8KW | 9.0KW |
| maximum output power | 5.5KW | 6.5KW | 8KW | 9KW | 10.0KW |
| Rated voltage | 220V | 220V | 220V | 220V/380V | 220V/380V |
| Insulation class | Class F | Class F | Class F | Class F | Class F |
| Rated frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| ENGINE | engine model | 188FE | 188FE | 192FE | 195FE | 1100FE |
| Bore*stroke | 88*75mm | 88*75mm | 92*75mm | 95*75mm | 100*75mm |
| ignition method | compression ignition | compression ignition | compression ignition | compression ignition | compression ignition |
| engine type | Vertical | single-cylinder | four-stroke | direct injection | air-cooled |
| Displacement | 420cc | 420cc | 499cc | 520cc | 535cc |
| Engine fuel consumption per hour | 2L | 2L | 2.3L | 2.5L | 2.5L |
| fuel type | 0/10/35(on weather) | 0/10/35(on weather) | 0/10/35(on weather) | 0/10/35(on weather) | 0/10/35(on weather) |
| oil quantity | 1.5L | 1.5L | 1.7L | 1.7L | 1.8L |
| Start method | Electric start | Electric start | Electric start | Electric start | Electric start |
| Attachment configuration | control panel | digital display | digital display | digital display | digital display | digital display |
| fuel indicator | Have | Have | Have | Have | Have |
| oil protector | Have | Have | Have | Have | Have |
| Caster attachment | Standard | Standard | Standard | Standard | Standard |
| fuel capacity | 20L | 20L | 20L | 20L | 20L |
| THE others | noise | 80dBA/7m | 80dBA/7m | 80dBA/7m | 80dBA/7m | 80dBA/7m |
| Continuous working time | 8h | 8h | 8h | 8h | 8h |
| Machine size L*W*H including wheel height) | 710*560*765 | 710*560*765 | 710*560*765 | 710*560*765 | 710*560*765 |
| Packaging size L*W*H | 770*770*725 | 770*770*725 | 770*770*725 | 770*770*725 | 770*770*725 |
| Package | carton | carton | carton | carton | carton |
| weight | 108kg | 110kg | 115kg | 120kg | 140kg |
